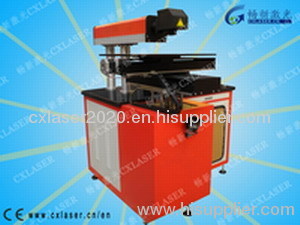

yag keyboard plate prices of printing machines with CE FDA

Payment Terms: T/T
Place of Origin: Hubei, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Production Capacity: 6000sets/year
Delivery Date: 10~15 days
Laser Type: YAG
Packing: wooden case
Application: Laser Engraving

yag keyboard plate prices of printing machines with CE FDA
1with infrared light whose wavelength of frequency band is 1064nm
2krypton lamp

yag keyboard plate prices of printing machines with CE FDA

Features:
YAG laser machine is a solid laser machine with infrared light whose wavelength of frequency band is 1064nm. It uses krypton lamp as energy source (driving source). YAG can send out special wavelength to let effective substance's level of energy jump higher so that it can let off laser. After the energy of laser is strengthened it will form a laser beam to process the material. The path of the laser beam will be changed through the resonance mirror controlled by computer so as to accomplish automatic marking.It has features of high marking speed and precision,low processing cost,durable mark that can last forever,etc compared with traditional ways..

Technical Feature:
1. With high speed scanning resonance mirror to get high precision and high speed.
2. The software controlling system has the interface of WINDOWS and comprises files output by software such as CORELDRAW, AUTOCAD, PHOTOSHOP, etc.
3. It can support graphic file formats such as PLT, PCX, DXF, BMP etc. and use fonts such as SHX ,TTF directly .
4. It also can mark automatic code, sequence number, batch number, date, bar code and two-dimensional code.
5. The max supported colour layer is seven, graphical mirror image, auto-filling in graphics, emendation of colors in a part of graphics.

Applicable Materials:
Metal (including rare metal), anodized and coated material, plastic, rubber, resin, ceramic etc.

Applicable Industry:
Electrical components, integrated chips, electric appliance, communication equipments, tools, precision machinery, glass frames, clocks and watches accessories, automotive accessories, Fake proof, Marking, plastic buttons, construction material, packaging, PVC pipes and medical instrument processing and manufacturing.

Technology Index:
Working intermediaYAG
Laser power 80W
Laser Wavelength1064nm
Repeat frequency0-50KHz
Working power supply380V±5%/50KHz
Marking area 100mm*100mm
Optional   50mm*50mm / 150mm*150mm / 300mm*300mm
Marking depth0.01-0.3mm
Marking Linear speed0-7000mm/s
Min.character0.2mm
Repeat precision±0.003mm
